PRODUCT INFO
Features
- Large 5 sq-in display with bright blue backlight
- Auto or manual changeover
- Auto or manual humidification control
- Dehumidification control with overcooling
- Adjustable temperature limits
- Indoor or outdoor remote sensing
- Multi-level keypad lockout
- Auxiliary heat fossil fuel option
- Separate user and installer reset buttons
- Programmable and circulating fan modes
- Temporary override limits

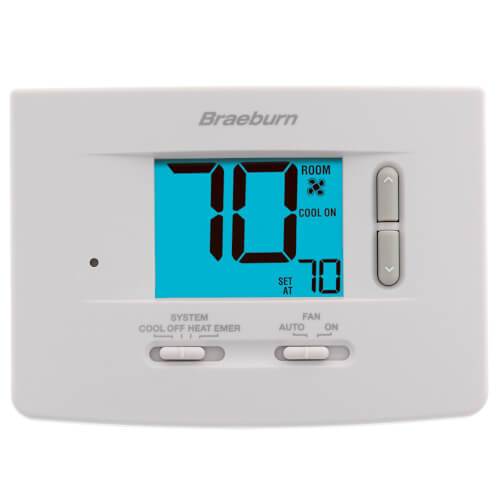

Braeburn® Premier Universal Programmable Thermostat, 18 to 30 VAC, 3 VDC, 5 A, Programmability: 7 Days, 5 to 2 Days, Non-Programmable, Auto, Manual Changeover, Battery, Hardwire Power Source, 4 Stage, Backlight Display, 0.5 to 1 deg F Differential, 14 to 140 deg F, 5 to 95 % Humidity, +/-1 deg F Accuracy, Alkaline Battery, C, G, H/D, O/B/V3, RC, RH, S1, S2, W1/E, Y1 Termination, AA Battery, 3.8 in H x 5.5 in W x 1.42 in D Dimensions
*Model 5025 has been discontinued. Model 4235 is the suggested replacement.*
| Accuracy | +/-1 deg F | ||
| Amperage Rating |
5 A |
||
| Battery Size | AA | ||
| Battery Type | Alkaline | ||
| Changeover |
Auto, Manual |
||
| Differential Temperature | 0.5 to 1 deg F | ||
| Dimensions | 3.8 in H x 5.5 in W x 1.42 in D | ||
| Display Type | Backlight | ||
| Humidity Rating | 5 to 95 % | ||
| Number of Stages | 4 | ||
| Power Source | Battery, Hardwire | ||
| Programmability | 7 Days, 5 to 2 Days, Non-Programmable | ||
| Temperature Rating | 14 to 140 deg F | ||
| Termination | C, G, H/D, O/B/V3, RC, RH, S1, S2, W1/E, Y | ||
| Voltage Rating | 18 to 30 VAC, 3 VDC |
