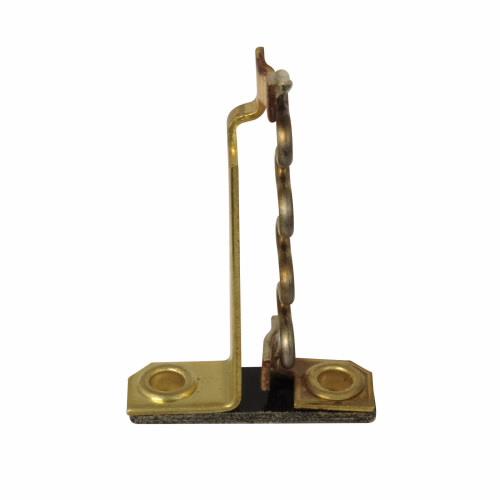

FH30 – Eaton – 4.4 Amp Overload Relay Heater

FH30 – Eaton Cutler-Hammer Overload Relay Heater

Cutler Hammer Thermal and fast trip heater element is compatible with safety and emergency exit devices. It has a current rating of 4.04 To 4.4 Ampere Ambient 3.43-3.73 3.96-4.31A Non-Comp 3.18-3.47 3.88-4.22A overload non-compensating enclosed starters.

Specifications:

• Product Name: A200/B100 Heater
• UPC: 786678629773
• Certifications: CSA Certified, UL Listed
• Catalog Notes: Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
• Design: NEMA
• Full Load Current Range: Ambient 3.43-3.73, 3.96-4.31A, Non-Comp 3.18-3.47, 3.88-4.22A
• Overload Relay: Type A and B
• Special Features: Used with Starter Sizes 0,1, and 2
• Type: A200/B100 Heater
• Used With: Used with Starter Sizes 0,1, and 2
• Trip Type: Thermal and Fast Trip
• Authentic Eaton/Cutler-Hammer Product
